Main crushing equipment:

A vibrating feeder WL1350

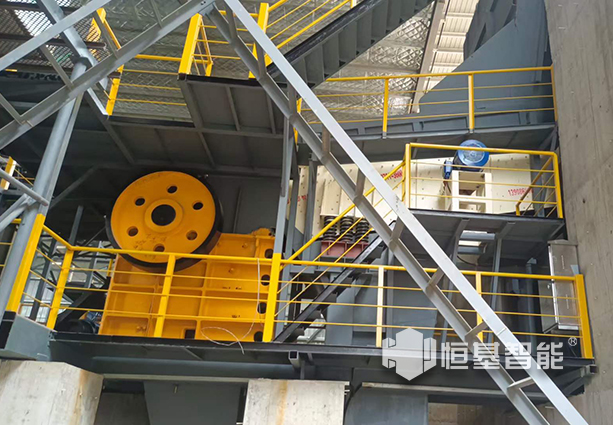

A jaw crusher PE750x1060

A single cylinder cone crusher CS440

Two vertical shaft impact crushers (sand making machines) GPR11000

Two double spiral sand washing machines XLS1560

Three vibrating screens 3YA3080

Four wheel bucket sand washing machines XSD3620

Two dewatering screens TD2445

Brief description of crushing process:

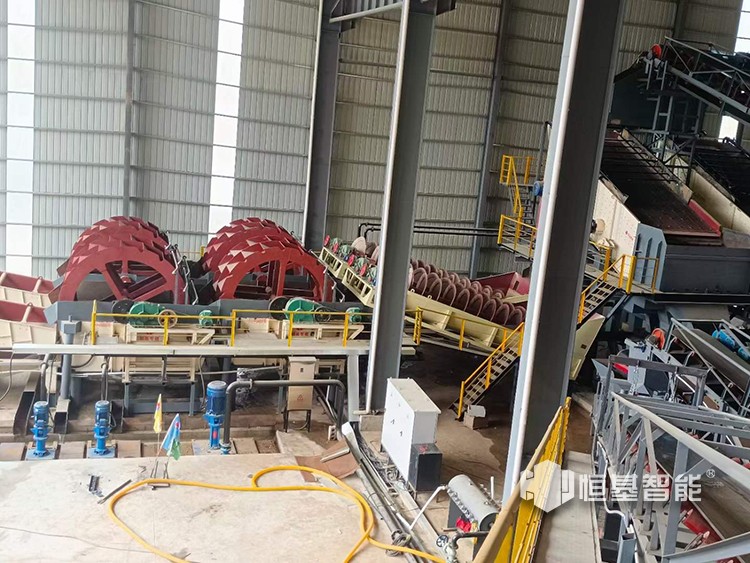

The process flow diagram of this sand making production line project: the materials are sent to the PE jaw crusher for coarse crushing through the WL vibrating feeder, and the qualified materials are screened out by the YA vibrating screen, and then the CS cone crusher performs secondary crushing treatment. It needs to be updated. Fine materials are crushed using a GPR sand making machine and screened by a YA vibrating screen. If the particle size of the material does not meet the sand making requirements, the sand making machine needs to be reworked for sand making and shaping, and finally it passes through the sand washing system (XSD wheel bucket washing machine). sand machine and XL spiral sand washing machine) to produce high-quality sand.

Henderson's intelligent equipment technical team can go to your production site to inspect the terrain, raw materials, output size, investment scale, etc. to design a one-on-one gravel and sand production line process for you, so that your sand production line can operate with high efficiency and save you money. The investment cost is reduced, the production is put into production quickly, the quality of the sand making products is good, and the profits are constantly increasing.
