PEV European version jaw crusher

The PEV jaw crusher, commonly known as the European version of the jaw crusher, is a new type of hydraulic jaw crusher developed by Yuncong Machinery after the PE series jaw crusher. It is the perfect combination of modern technology and production practice, and is more in line with the needs of our customers. Automated production needs.

Get Product Quote

PEV European version jaw crusher

获取产品报价

Product features

It has a solid structure, superior cavity design, long-lasting wear resistance, easy adjustment, and integrated motor installation.

Feed particle size: 50-980mm

Throughput capacity: 50-1275 tons/hour

Applicable materials: granite, marble, basalt, limestone, quartz stone, river pebbles, iron ore, copper ore, etc.

Product technical parameters

型号	进料口尺寸 (mm)	最大进料粒度 (mm)	出料口调整范围 (mm)	处理能力 (t/h)	电机功率 (kw)	外形尺寸 (mm)
PEV750×1060	750×1060	680	70-200	155-580	110	2860×2205×2455
PEV950×1250	950×1250	800	100-250	290-845	160-200	2950×2776×2875
PEV1300×1600	1300×1600	1200	150-300	520-1275	315-355	4200×3640×3550

Remarks:

The specific gravity of the pile is 1.6t/m³, the width of the feed opening is ≥600mm for large size, and 300-600mm is for extra large size.
2. The product pictures, models, data, functions, performance, specifications, etc. on this website are for reference only. Hengji Heavy Industry may improve the above content. For specific information, please refer to the actual product and product manual.Unless otherwise specified, the right to interpret the data involved in this website belongs to Hengji Intelligent Equipment.

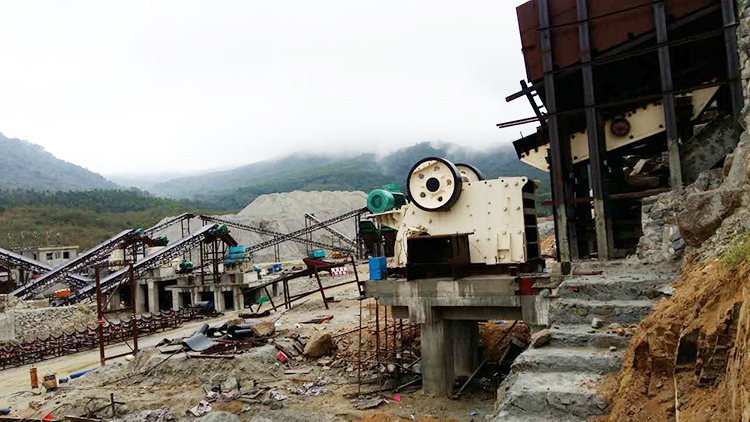

Product application

Working Principle of PEV European Jaw Crusher

The motor of PEV European Jaw Crusher drives the belt and pulley, and makes the movable jaw swing back and forth and up and down through the eccentric shaft. When the movable jaw pushes the movable jaw plate to move towards the fixed jaw plate, the material is Crush or chop.When the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and spring, the previously crushed or chopped materials are discharged from the lower discharge port of the jaw plate.As the motor continuously rotates, the movable jaw of the crusher periodically crushes and discharges materials to achieve mass production.
