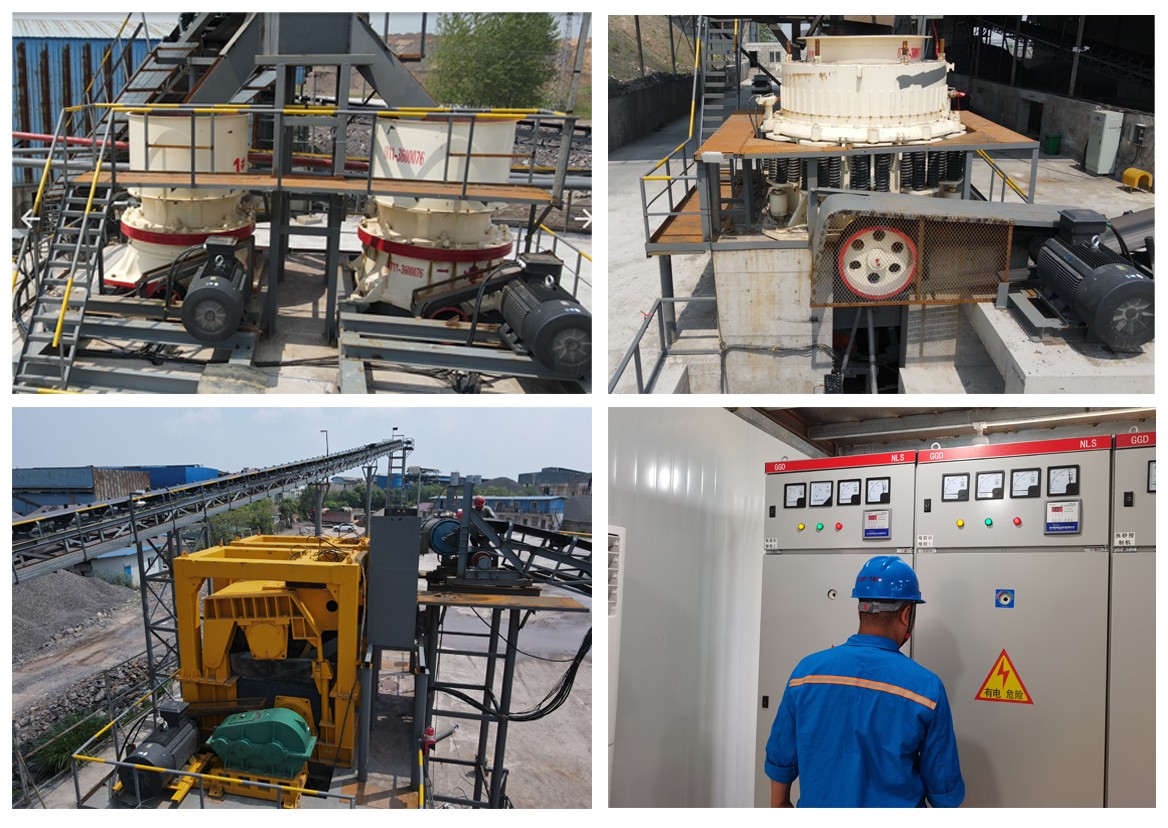

Main crushing equipment:

Feeder ZD 1422 two units

Jaw crusher PEV900*1250 one set

Spring cone crusher HJC1800 set

Single cylinder hydraulic cone crusher CS660 two units

Two roller sand making machines DR150

Vibrating screen 2YA2470 two sets

Vibrating screen 2YA3080 two sets

Double spiral sand washing machine 3LX1570 two units

Wheel bucket sand washing machine XSD3620 two sets

Fine sand recovery integrated TD2040 two units

Two filter presses

Project Benefits:

The energy-saving and environmentally friendly sand making production line achieves the high-quality fine machine-made sand required for the production of engineering construction concrete through the crushing and shaping of stones, aerodynamic screening and powder selection, and particle gradation adjustment. The finished aggregate has good particle size and good gradation.

In this project, Hengji adopts a double-head crusher design to allow users to deal with raw materials with different mud contents. One jaw crusher is equipped with a stone washing machine to process raw materials with heavy mud contents, reducing the load of the cone crusher. It is also equipped with double bins to make the main crusher The equipment maximizes production capacity and reduces losses. The sand washing part uses a spiral sand washing machine and an impeller sand washing machine. The spiral sand washing machine is used first to separate the mud and sand, and then the impeller sand washing machine is used to reduce the loss rate of fine sand, reduce the load of the fine sand recovery machine, and wash out the finished product. The sand has low mud content and good-looking grain shape.
