HJC spring cone crusher series

The HJC spring cone crusher series is designed and developed by our company based on the introduction and absorption of foreign Simmons cone technology, according to customer needs, based on the lamination crushing principle and the concept of more crushing and less grinding, integrating high swing frequency and optimized cavity. It is a modern high-performance crusher that combines shape and reasonable stroke.

Get Product Quote

HJC spring cone crusher series

获取产品报价

Product features

Inheriting classic design, innovative technology research and development, achieving stable and efficient performance

Feeding particle size: 0-178mm

Production capacity: 45-1400 tons/hour

Applicable materials: granite, diabase, basalt, river pebbles, limestone, dolomite, metal ore and non-metallic ores, etc.

Product technical parameters

型号	腔型	最大进料粒度 (mm)	排料口	出料口可调整尺寸(mm)	功率 (kw)	产量 (t/h)	重量（t）
型号	腔型	最大进料粒度 (mm)	排料口	出料口可调整尺寸(mm)	功率 (kw)	产量 (t/h)	重量（t）
HJC1200 (45英寸)	粗C	180	25	10-38	110-132	115-260	15.5
	中M	130	16	10-25		110-175
	细F	90	13	10-19		80-140
	超细EF	60	10	10-19		74-130
HJC1300 (51英寸)	粗C	200	25	16-51	132-160	150-390	22.3
	中M	150	25	13-25		115-210
	细F	102	23	10-19		90-160
	超细EF	70	16	10-19		88-155
HJC1400 (54英寸)	粗C	215	25	19-51	200-220	220-440	26.3
	中M	160	25	16-25		155-220
	细F	115	23	13-22		150-230
	超细EF	76	19	10-19		122-200
HJC1650 (60英寸)	粗C	235	28	22-64	220-250	265-580	37.75
	中M	175	25	19-38		215-320
	细F	130	22	13-25		180-275
	超细EF	90	19	10-19		148-220
HJC1950 (66英寸)	粗C	267	30	22-64	250-280	330-725	44.3
	中M	203	28	16-25		230-330
	细F	140	25	10-19		185-340
	超细EF	95	22	10-16		180-335
HJC2150 (84英寸)	粗C	425	38	51-64	355-440	1179-1361	92.5
	中M	334	31	38-64		789-1257
	细F	303	25	25-64		608-1128
	超细EF	253	22	19-64		381-1036

Remarks:

The specific gravity of the pile is 1.6t/m³. The width of the feed opening is ≥600mm for large size, and 300-600mm is for medium size.
The product pictures, models, data, functions, performance, specifications, etc. on this website are for reference only. Henderson Intelligent Equipment may improve the above content. For specific information, please refer to the actual product and product manual.Unless otherwise specified, the right to interpret the data involved in this website belongs to Henderson Intelligent Equipment.

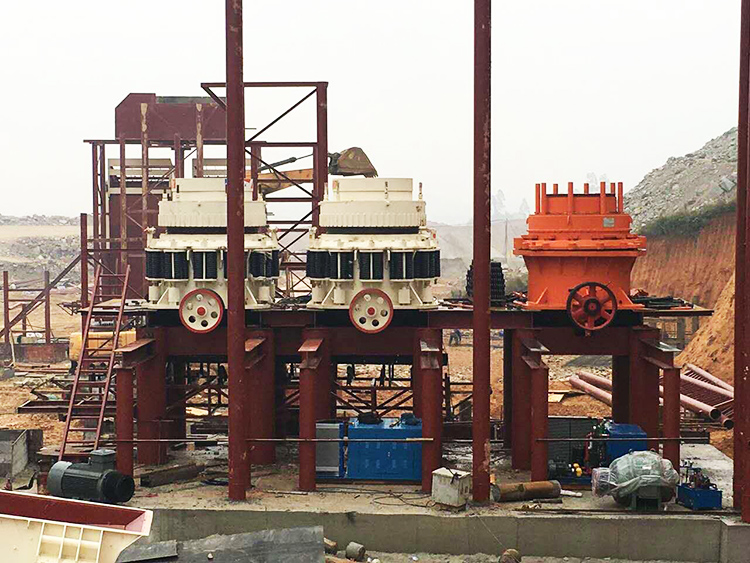

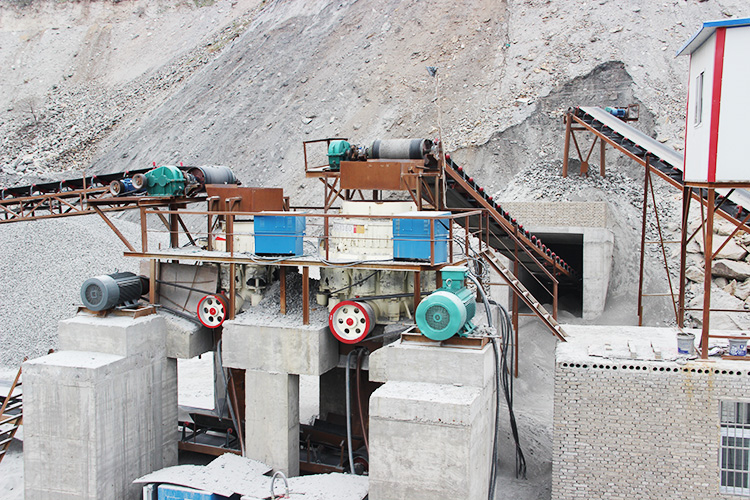

Product application

Working principle of HJC spring cone crusher

When the HJC series high-efficiency spring cone crusher works, the motor drives the eccentric sleeve to rotate through the V-belt, large pulley, transmission shaft, small bevel gear, and large bevel gear. The main shaft is forced by the eccentric sleeve. The crushing wall rotates and swings while moving, so that the crushing wall sometimes approaches and sometimes moves away from the rolling mortar wall, so that the material is continuously impacted, squeezed and bent in the annular crushing cavity composed of the fixed cone and the moving cone and is broken.After many times of extrusion, impact and bending, the material is broken to the required particle size and discharged through the lower part.
