PF counter attack series

PF series impact crusher uses impact energy to break materials.The rotor rotates at high speed driven by the motor. The material entering from the feed port collides with the plate hammer on the rotor and is crushed by the high-speed impact of the plate hammer. The crushed material is pushed back to the lining plate for crushing again. Finally, it is discharged from the outlet. Discharge from the material port.

Get Product Quote

PF counter attack series

获取产品报价

Product features

Adopting new scientific research results such as "keyless expansion sleeve" and "hydraulic opening and closing", the overall service life is longer and the crushing efficiency is higher.

Feed particle size: 0-600mm

Production capacity: 50-350 tons/hour

Applicable materials: limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

Product technical parameters

型号	转子规格 (mm)	进料口尺寸 (mm)	最大进料粒度 (mm)	处理能力 (t/h)	功率 (kw)	外形尺寸 (mm)	重量T（不包括电机）
PF1007	Φ1000×700	400×700	300	25-45	30-50	2400×1558×2660	9.5
PF1010	Φ1000×1050	400×1080	300	50-60	55-75	2400×2250×2620	12.2
PF1214	Φ1250×1400	400×1430	325	100-160	132-160	2690×2688×2890	18.6
PF1315	Φ1320×1500	860×1520	350	150-220	200-220	3096×3273×2667	23.5
PF1320	Φ1320×2000	860×2020	350	220-280	280	3400×2900×2600	26
PF1515	Φ1520×1500	850×1520	350	280-320	315	3553×2832×3277	26
PF1520	Φ1520×2000	860×2020	350	300-450	400	3250×3290×3240	35
PF1620	Φ1640×2000	800×2020	400	400-550	250*2	3505×3740×3085	39

Remarks:

The specific gravity of the pile is 1.6t/m³. The width of the feed opening is ≥600mm for large size, and 300-600mm is for medium size.
The product pictures, models, data, functions, performance, specifications, etc. on this website are for reference only. Hengji Heavy Industry may improve the above content. For specific information, please refer to the actual product and product manual.Unless otherwise specified, the right to interpret the data involved in this website belongs to Hengji Machinery.

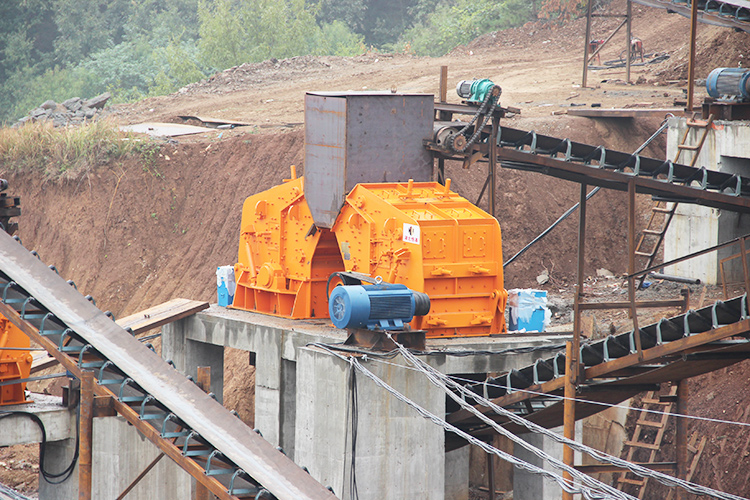

Product application

Working principle of PF impact crusher

PF series products use impact energy to crush materials.When working, the rotor rotates at high speed driven by the motor. The material entering from the feed port collides with the blow bar on the rotor and is crushed by the high-speed impact of the blow bar. The crushed material is counterattacked to the lining plate and crushed again. Finally, it is discharged from the discharge port.Adjusting the gap between the impact frame and the rotor frame can change the material discharge particle size and material shape.
